AR-L331E Suction Type

CNC Machining,Sheet Metal Fabrication,Tooling, Fixture,CNC Metal Parts,Precision Hardware

  • Aoli
  • China
  • Suction Type
  • 3 Axis Table
  • Tighten screws
Have a question? Ask Us

1.Working area:300*300*100mm

2.Screw Pocket Volume:M2*6 5000PCS

3.Voltage:220V 50HZ  110V 60HZ

4.Power:360W

5.Screw Feeding Speed:0.75 sec/pc

6.Torque 0.12-2.5NM

 7.Machine Weight:90kgs                        Packing weight:105kgs

 8.Machine size:610*680*550mm                   Packing size:  780x680x1000 mm(plywood)

 9. Required Air source:>=0.5Mpa(machine doesnot includes air compressor)

10.Required Magnetic screw

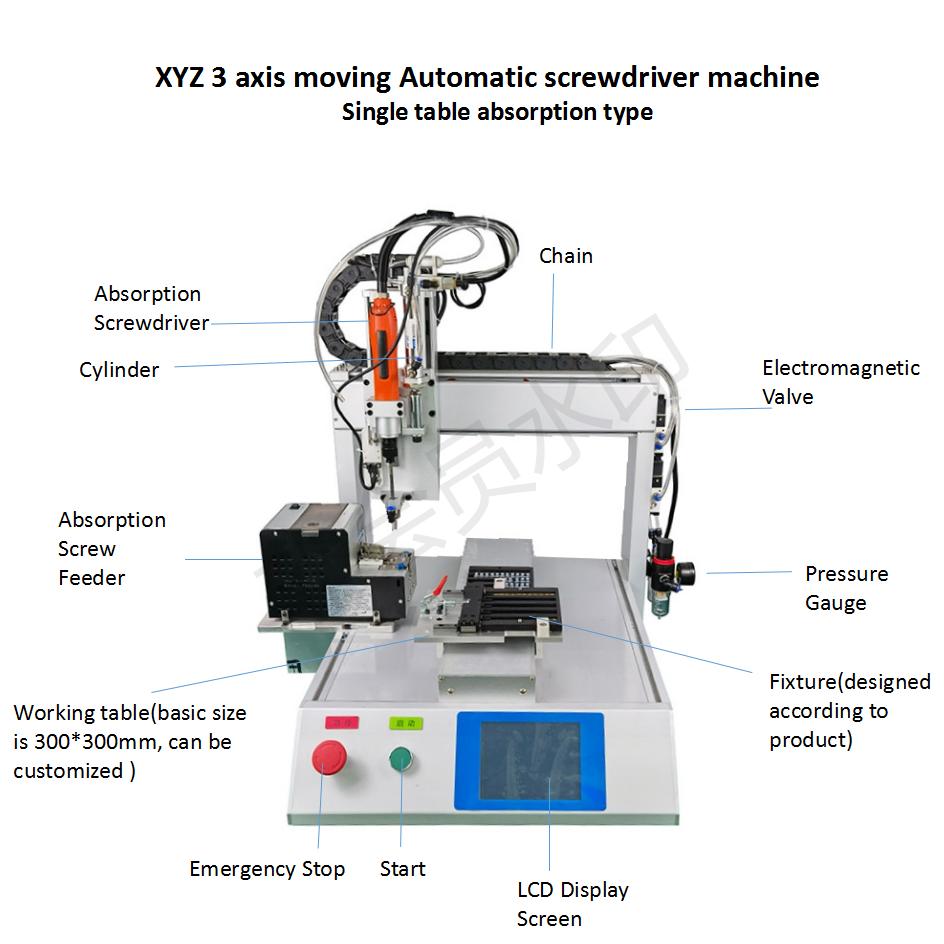

AR-L331E Suction Type(图1)
