AR-D331-X Glue Dispensing Machine

CNC Machining,Sheet Metal Fabrication,Tooling, Fixture,CNC Metal Parts,Precision Hardware

  • Aoli
  • China
  • Glue dispensing machine
  • 3 Axis Table
  • Glue
Have a question? Ask Us

Glue Dispenser



Applicable glue

Automatic glue dispenser machine for Silicone glue dispensing, UV glue dispensing, AB glue dispensing, epoxy resin dispensing, instant glue dispensing, EMI conducting resin dispensing, sealant dispensing, hot glue dispensing, grease dispensing, elargol dispensing, red gum dispensing, solder paste dispensing, thermal grease dispensing, solder grease dispensing, zapon lacquer dispensing, screw fixing agent dispensing, COB black glue dispensing, white glue dispensing, silver glue dispensing, transparent paint dispensing, etc.



Application

1) Electro-acoustic industry: speakers glue dispensing, buzzers glue dispensing, audio glue dispensing, headphones glue dispensing.

2) Small transformers glue dispensing, SMD transformers glue dispensing, relays glue dispensing, small coil motors glue dispensing.

3) Communications industry: the phone keypad glue dispensing, mobile phone casing bonding glue dispensing, radio glue dispensing, telephone glue dispensing.

4) Computers glue dispensing, digital products glue dispensing, digital elephant machine glue dispensing, PAD glue dispensing, electronic toys glue dispensing, chassis bonding glue dispensing.

5) Switches glue dispensing, connectors glue dispensing, wire glue dispensing, plug glue dispensing.

6) Electronics: electronic components glue dispensing, integrated circuits glue dispensing, circuit board solder paste glue dispensing, electronic parts fixed and dust and moisture protection, LCD liquid crystal screen glue dispensing, etc.

7) Optics: optical lenses, bald, head.

8) Mechanical hardware glue dispensing, battery box sealing glue dispensing, label fixing adhesion glue dispensing, car parts coating glue dispensing.

9) Food packing glue dispensing.

10) LED industry glue dispensing.



Attention: this robot fit for all viscosities of glue.

Usage

Can dot, draw lines, squares, circles and all kinds of irregular graphics on the surface, on the outside wall, in the vertical plane and the gap of the products.



Advantages

1) Full-automatic glue dispenser can dispense through 3D and 4D path. It can quickly draw dot, line, circle and all kinds of irregular figures on the surface, vertical plane, gap and spherical surface.

2) Graphics import or machine screen edit, easy to operate with high precision.

3) Big scale workstation can place multiple products, which is more efficient. Workstation can be customized according to the size of product.

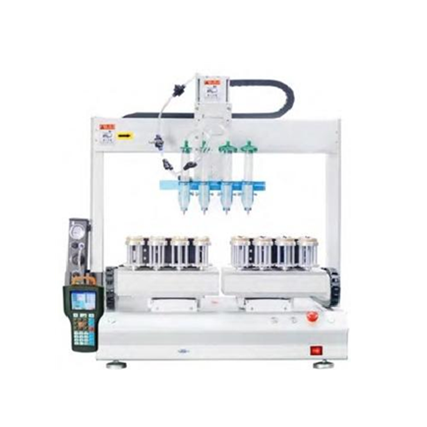

4) Glue dispenser can be equipped with several dispensing heads and operate at the same time, greatly increasing dispensing efficiency.

5) Glue dispenser is applicable for all kinds of glue. Dispensing liquid such as oil paint and printing ink needs to equip additional high-capacity pressure barrel to reduce glue changing time.

6) We are a manufacturer with more than 16 years of production experience. We have excellent R&D and production ability, sound QC system and perfect after-sale service. SeekRobots has become a nationwide famous brand in China.

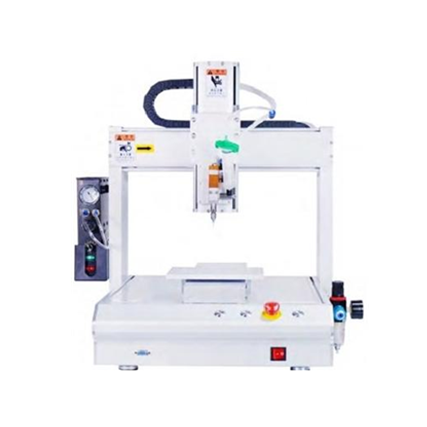

3-axis Glue Dispenser





Features

1) Stand-alone operation can work without connecting to computer, easy to install and operate.

2) PC or machine touch screen edition, precise positioning and dispensing control.

3) Can accelerate and decelerate in trapezoid and S.

4) Online teaching of dispensing and motor pattern. Can easily complete matrix copy in different path, modify offset, set calibration point and transmit program among several machines, etc.

5) Can restore multiple independent operational procedures.

6) Simple and easy programming, operation and maintenance.

7) Can be customized at customers request for different application.



Specification

Working Area: 300*300*60mm Customization available

Repeatability: +/- 0.01mm

Resolution: 0.0.1mm

Input: 220V/50Hz +/- 10% 250W

Max Speed: 500mm/sec

Minimum Glue Flow: 0.001ml

Weight: 90-150KG

Model

AR-D331-X

AR-D551-X

AR-D461-X

Work area X/Y/Z(mm)

300/300/60mm

500/500/60mm

400/600/60mm

Max material weight

10kg

Max. speed mm/sec

500

Repeatability

+/-0.01mm

Remember date

100 units, one unit=4000 points

Disply screen

5.7 inch

Moter

Micro stepping motor/belt

Movement

Point to point / continuous line

Transmission

Belt + precision linear guide

Motion interpolation function

3 axis

Edit input

Touch screen or computer input/can work with computer

I/0 signal

16 Inputs/16 Outputs

Control style

Integrated controller

Power

AC/220V/250W

Operation temperature

5-40’C

Operate humidity

20-90%

Size

(L)670*(W)550*(H)610mm

Weight(kg)

90-150
